Product introduction

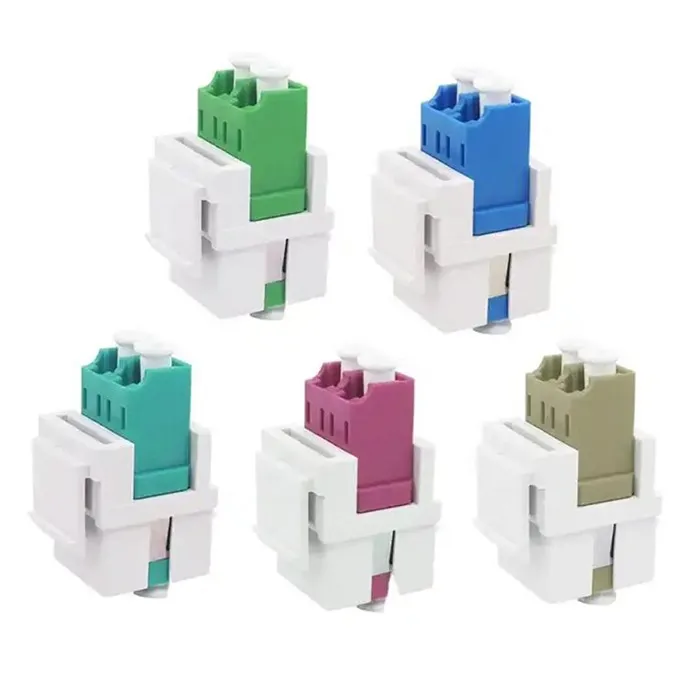

LC fiber optical adapter is a docking device used to connect two LC fiber connectors (jumpers). It is a common small connector in fiber optic cabling systems. Its main function is to accurately align and firmly dock two optical fibers, thereby achieving stable transmission of optical signals.
product Specification
|
Parameter |
Unit |
SC, FC, ST, LC LC Fiber Optical Adapter |
|||
|
SM |
MM |
||||
|
PC |
UPC |
APC |
PC |
||
|
Insertion Loss (Typical) |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
|
Exchangeability |
dB |
≤0.2 |
|||
|
Repeatability |
dB |
≤0.2 |
|||
|
Durability |
Time |
>1000 |
|||
|
Operating Temperature |
°C |
-40~75 |
|||
|
Storage Temperature |
°C |
-45~85 |
|||
Product features
Low Loss
The signal transmission loss of our LC fiber optical adapter is below 0.2dB, which is 30-40% lower than the 0.3-0.5dB loss of ordinary adapters. This is because the LC fiber adapter uses a precision ceramic sleeve. Its inner diameter tolerance is controlled within ±0.001mm, which is much better than the industry standard ±0.003mm requirement. This enables the adapter to achieve precise docking between optical fiber cores and minimize optical energy loss.
Interchangeability
The interchangeability of LC Fiber Optical Adapter is ≤ 0.2dB. This means that when a user replaces a fiber jumper, the insertion loss of the new connection is no more than 0.2dB different from the original connection. In contrast, the interchangeability of SC or FC adapters is usually around 0.3dB. Therefore, even if the user replaces the fiber jumper from different manufacturers, the signal loss of the LC adapter is still minimal, which will not affect the operation of the equipment, thereby reducing the difficulty of maintenance.
High Strength
Our LC adapter shell is made of polycarbonate material, and its tensile strength reaches 70MPa, which is twice that of ordinary ABS material. At the same time, our spring clamping device can withstand a tensile force of 50N without falling off, which is 1.5 times that of ordinary clamping devices, ensuring that the LC adapter can still maintain a stable connection in a high vibration environment (such as 5-500Hz, 1.5G acceleration).
FAQ
Q: Are you a trading company or factory?
We are a factory based in Shenzhen, China. Welcome to visit our facility.
Q: How can you guarantee quality?
Always provide a pre-production sample before mass production.
Always conduct a final inspection before shipment.
Q: What can I buy from you?
You can purchase a variety of products, including:
Optical Cable, ADSS Cable, FTTH Drop Cable, Fiber ONU, Fast Connector, Patch Cord, Pigtail, and more.
Q: Can you accept my own logo on the product or customize my idea?
Yes, we accept custom logos and ideas. Please feel free to share your requirements.
