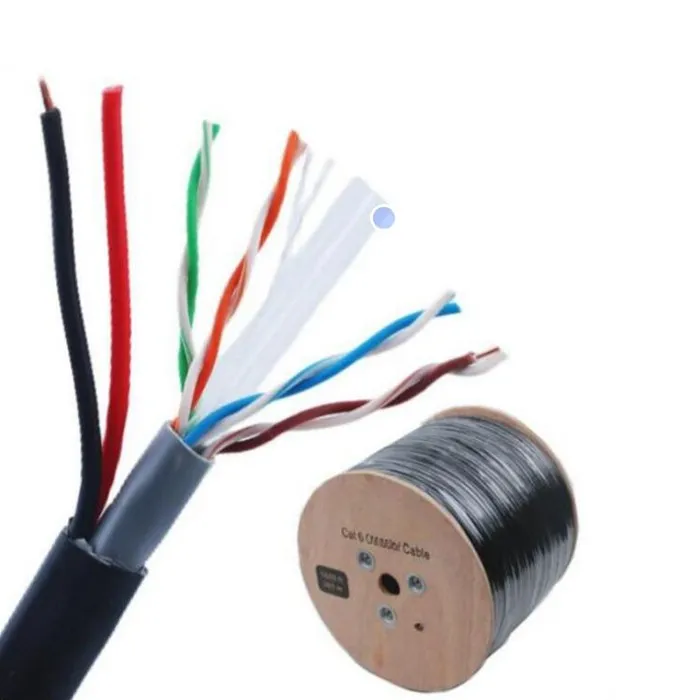

305M Network Cable

As for normal standard 305M Network Cable in network,it is 300 meters per box, but due to the need to leave some margin for easy interception during installation, it is generally longer than the standard, usually around 305 meters. The 1000 feet of the British standard FEET is exactly equivalent to 305 meters.

The main advantages of Category 6 305M Network Cable include the following:

• Higher transmission rate: Category 6 network cables offer a bandwidth 2.5 times higher than Category 5e, reaching up to 1Gbps, meeting the demands of high-speed network transmission.

• Better electrical performance: Category 6 network cables offer improved balance, effectively reducing signal crosstalk and return loss, thereby improving network performance and stability.

• More stable transmission quality: Category 6 network cables utilize a twisted-pair structure, with each pair of wires nested in four grooves within a cross-core cable frame. This design increases transmission speed and enhances interference resistance.

• Longer transmission distance: Category 6 network cables offer long transmission distances, low transmission loss, and strong wear and pressure resistance.

• More durable outer sheath: The outer sheath of Category 6 network cables is made of high-quality, environmentally friendly PVC material, which is wear-resistant and oil-resistant, extending the cable's lifespan.

• Higher frequency: Category 6 network cables operate at a transmission frequency of up to 250MHz, making them suitable for Gigabit networks or short-distance 10GbE networks, supporting most broadband connections.

How to choose the appropriate 305M Network Cable for new house decoration?

1. For home decoration network, choose CAT5 Category 5e Ethernet cable or CAT6 Category 6 Ethernet cable, remember to buy unshielded cables, don't buy shielded cables.

2. For long-distance wiring, try not to buy flat or ultra-thin wires, just buy regular network cables in a regular manner.
3. When buying a network cable, check the core material and prioritize oxygen free copper, followed by pure copper. Do not buy copper-clad aluminum or aluminum core.
4. If you want good network quality, not only should the network cable be good, but also the crystal head and wall plug panel should be purchased in a more reliable way.

How to judge the quality of the 305M Network Cable?

The simplest way is to check the material, such as oxygen free copper, pure copper, or aluminum. The most common way is to test whether the network speed can meet the standard. The advanced way is to use instruments to test various indicators of the network cable, such as resistance, skin aging resistance, etc. Of course, the most important is the communication performance indicators of the network cable, such as attenuation, near end crosstalk, insertion loss, etc., all of which have corresponding strict standards

What about the difference between Class 6 wires of 24awg gauge and Class 6 wires of 23awg gauge?

Many companies offer two types of wire gauges, 24AWG (0.51mm) and 23AWG, for Category 6 wires, while most generally only provide 23AWG (0.57mm) wire gauges. Many people are concerned about whether the performance of 24AWG Category 6 network cables meets the standards. The reason for this problem is that the American standard ANSI/TIA-568 and the international standard ISO/IEC 11801, as well as the Chinese national standard GB/T18015.5-2007, only require network cables to comply with relevant performance testing standards, but only specify a rough range of 22awg to 24AWG 0.50-0.65 for conductor diameter.

However, China's postal and telecommunications industry standard YD/T1019-2013 specifies a diameter of 0.57mm for Category 6 and Category 6A network cables. But this standard is only an industry standard and not mandatory. In theory, even if the diameter of the network cable is relatively small, the performance of the network cable can be improved by using better materials (such as oxygen free copper with higher purity and lower resistance) or processes (such as increasing the twisting distance of the network cable). For example, Category 6 and Category 6 wires can be the same 23AWG wire standard, but Category 6 wires have higher performance than Category 6 wires. So, as long as the relevant performance tests meet the standards, the Class 6 wire of 24awg wire gauge also complies with the Class 6 wire standard
